Strip Heater

SmithHeat Strip Heaters are manufactured to your custom specifications. Our strip heaters feature a high temperature oxidation metal sheath and high grade mica insulation resistant to moisture and high temperatures. Nickel/Chromium resistance wire evenly wound provides for uniform and reliable heat distribution.

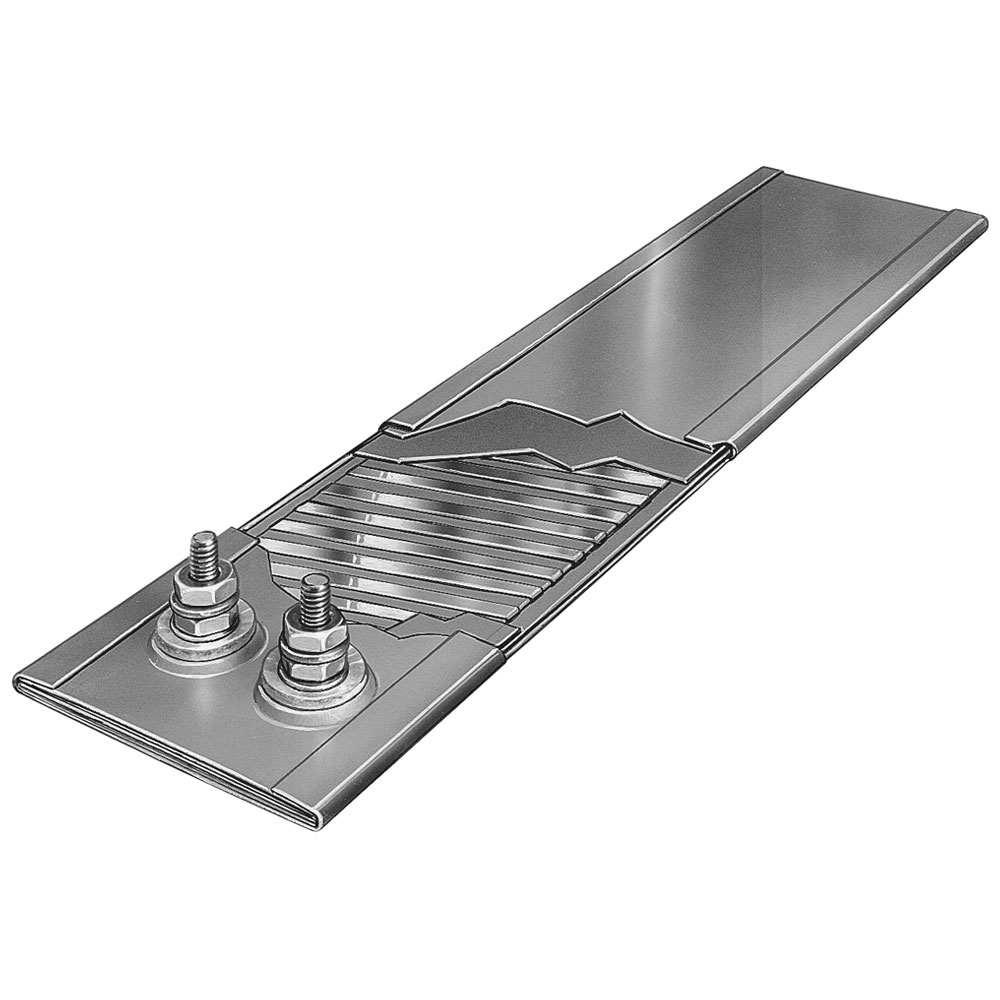

Custom Strip Heater for Industrial Use – Smiththerm

SPECIFICATIONS AND TOLERANCES

DESCRIPITION
APPLICATION

Performance Capabilities

  • Aluminized steel sheath temperatures up to 1100°F (595°C)
  • 430 stainless steel sheath temperatures up to 1200°F (650°C)
  • Watt densities up to 100 W/in2 (15.5 W/cm2)
  • UL® approved up to 240VAC (File No. E52951)
  • CSA approved up to 600VAC (File No. LR7392)

Features and Benefits

Nickel-chromium element wire is centered in the heater

  • Assures uniform heat

Aluminized steel sheath

  • Operates at higher temperatures and resists corrosion better than iron-sheathed heaters
  • Minimizes heat-up time

Optional 430 stainless steel sheath

  • Meets temperature requirements that reach up to 1200°F (650°C)

Post terminals, welded to the element wire

  • Produces strong, trouble-free connections

Rigid 3/8 in. (9.5 mm) thick design

  • Enables the heater to fit into many existing applications

Over 100 in-stock models in popular sizes and ratings

  • Allows next day shipment

Available dimensions are 11/2 in. (38 mm) wide and 51/2 to 48 in. (140 to 1219 mm) long

  • Fits a variety of application needs

Typical Applications

  • Food warming
  • Freeze and moisture protection
  • Tank and platen heating
  • Packaging
  • Dies and mold heating
  • Autoclaves
  • Ovens
  • Telecom
